Similarity and Euclidian Distance Marker Examples
Similarity marker examples
Description

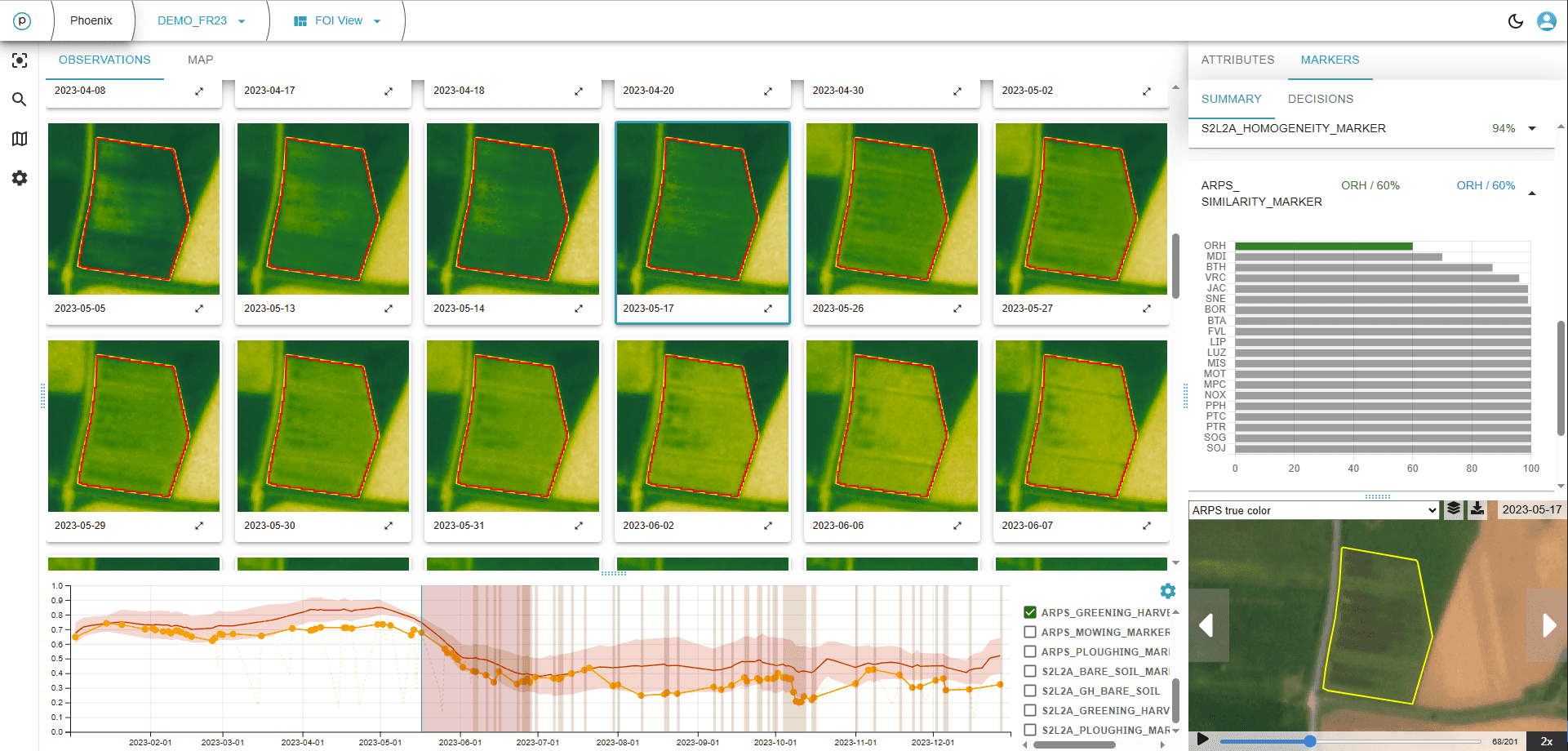

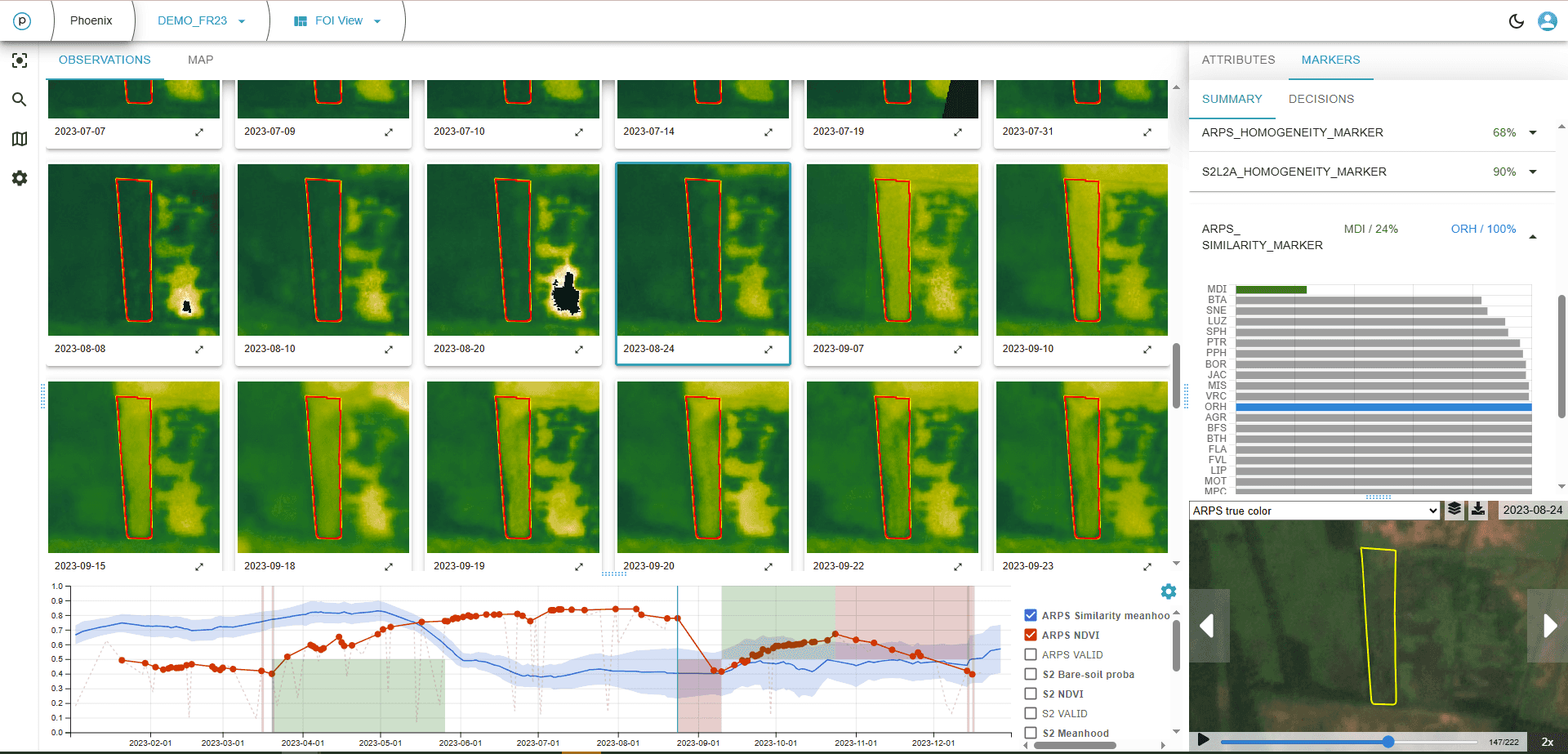

The Area Monitoring App screenshots below show two FOIs, both claiming to grow winter barley. The example on the left is found to be consistent with this claim according to the low similarity marker score, while the example on the right shows high similarity score and therefore inconsistency with the claimed crops as demonstrated in the similarity marker scores bar chart.
| Consistent with winter barley claim (FOI = 92275442) | Not consistent with winter barley claim (FOI = 92274515) |
|---|---|
|
|
Links
See in Area Monitoring App: left example, right example
Euclidean distance marker examples
Description

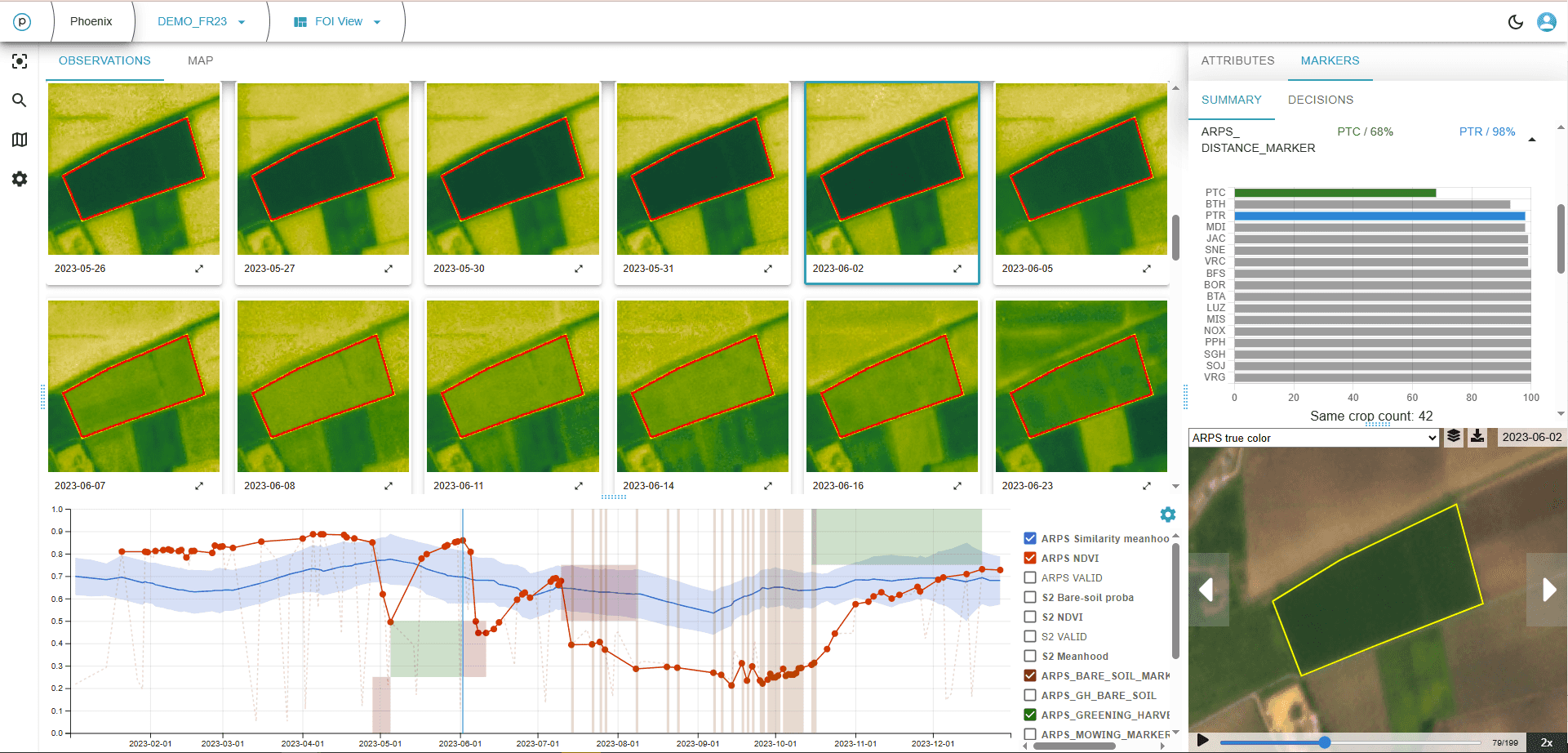

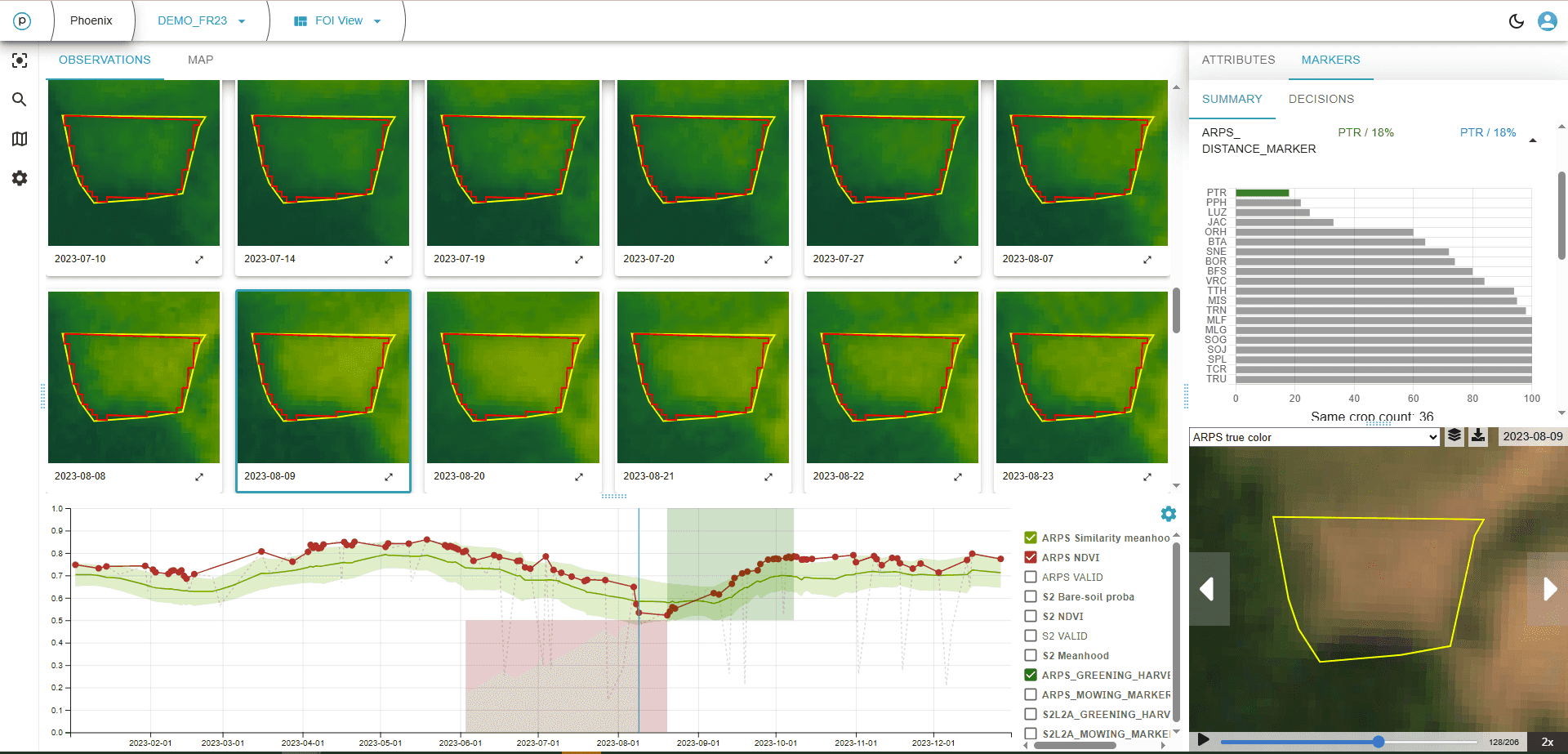

The Area Monitoring App screenshots below show two FOIs, both with a temporary prairie claim. The example on the left is found to be consistent with this claim according to the low distance marker score, while the example on the right with the high distance score is not. The latter is more similar to FOIs that claim to grow potato (PTC).
| Consistent with temporary prairie claim (FOI = 92269340) | Not consistent with temporary prairie claim (FOI = 92281419) |
|---|---|
|
|
Links
See in Area Monitoring App: left example, right example
